ArcGIS Pro

ArcGIS Pro

Please Note

VMI's Education Institutional Agreement with ESRI allows VMI to download and use ArcGIS for academic use.

Download Installer​

Installation Instructions - Silent Install [RECOMMENDED]​

Silent Installation

This silent install method will install everything in the background with no user interaction. Please allow the black cmd.exe window to close on its own even after the progress bar finishes.

Extract the .zip file then right click the installer.bat file and click 'Run as administrator'

Installation Instructions - Manual​

Manual Installation

Only use this method if you are having issues with the Silent Installation method This manual install method will install everything with user interaction required.

REQUIRED PREREQUISITE INSTALLS​

ArcGIS Pro requires two components to be installed before running the ArcGIS Pro installer:

* .NET Desktop Runtime 8.0 (x64)
* Microsoft Edge WebView2 Runtime

.NET Desktop Runtime x64​

  1. Run windowsdesktop-runtime-8.0.0-win-x64.exe
  2. Click Install
  3. Close when complete

Microsoft Edge WebView2 Runtime​

  1. Run MicrosoftEdgeWebView2RuntimeInstallerX64.exe
  2. This will install silently
    • You may already have this installed depending on what OS version you are running. If so it will state it is already installed on your system.
  3. Click Close when comeplete

ArcGIS Pro Installation​

  1. Run ArcGISPro.msi
  2. Click Next at the ArcGIS Pro splash screen
  3. Click Next at the Welcome to the ArcGIS Pro Setup program screen
  4. Read the Master Agreement and select I accept the master agreement and click Next
  5. Select Anyone who uses this computer (all users) and then click Next
  6. Keep defaults at Select Features then click Next
  7. Choose if you would like to submit data to ESRI at Ready to Install the Program screen and click Install
  8. Wait for the program to install (Note: The time will vary, it roughly took 10 minutes in the video tutorial)
  9. When installation has been successfully installed keep the default Run ArcGIS Pro now checked and click Finish to open the ArcGIS Sign In licensing activation popup. See below to add our organizations URL.
IMPORTANT

At the ArcGIS Sign in popup when you first start ArcGIS Pro click "Your ArcGIS organization's URL" and then type "vmionline" into the organization's URL text field and SELECT "Remember this URL" then click Continue.

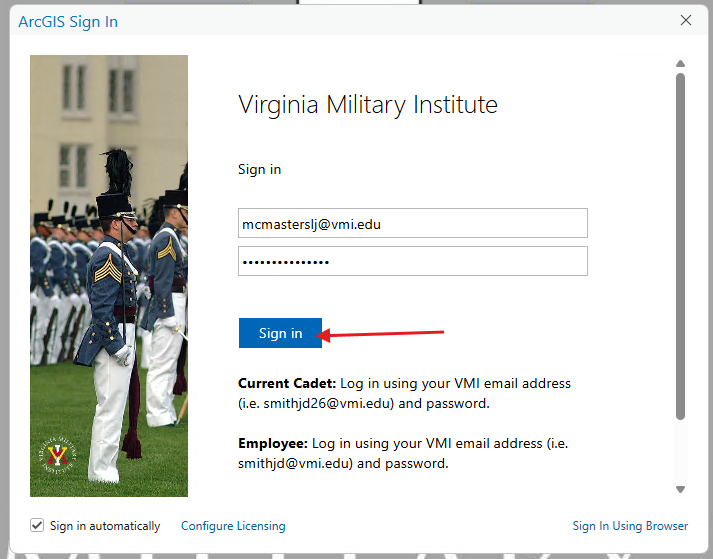

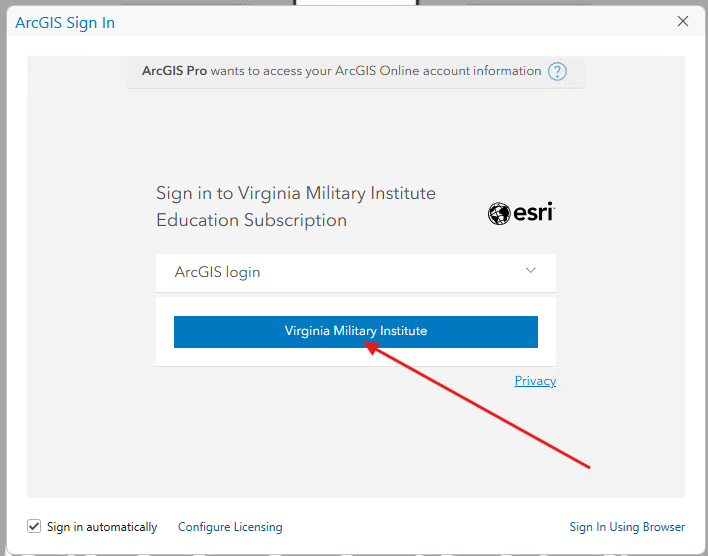

Login​

Login wih your VMI Credentials

Troubleshooting​

Licensing Configuration Settings are Locked/Grayed out​

If you have an old ArcGIS install using the Single Use License and the licensing screen comes up and is grayed out and wont let you change your license, follow these directions to change to the named user licensing:

Direct Link to Technical Support Article: https://support.esri.com/en-us/knowledge-base/error-arcgis-pro-licensing-configuration-settings-are-l-000033293#:~:text=August%2021%2C%202024-,Error%20Message,-When%20attempting%20to

Error Message​

When attempting to launch ArcGIS Pro with a Concurrent Use license, the launch fails and returns the following error message:

Error: Licensing configuration settings are locked. Please contact your organization's administrator. In some instances, the error message also returns when attempting to change the license level of the Concurrent Use license in ArcGIS Pro.

Cause​

By default, installing ArcGIS Pro silently sets the LOCK_AUTH_SETTING key in the Registry Editor to True. When this parameter is set to true, the license configuration is disabled, and any changes required are blocked.

Solution or Workaround​

Change the LOCK_AUTH_SETTING key in the Registry Editor​

  1. Click Start on the Windows taskbar or press the Windows key.
  2. In the search bar, type Registry Editor, right-click Registry Editor, and click Run as administrator. If prompted, click Yes in the User Account Control window.
  3. In the Registry Editor window, expand HKEY_LOCAL_MACHINE > SOFTWARE > ESRI > ArcGISPro > Licensing.
  4. Right-click the LOCK_AUTH_SETTINGS string, select Modify....
  5. In the Edit String dialog box, for Value Data, specify False as the key value.
  6. Click OK.
  7. Start ArcGIS Pro and the ArcGIS Sign In licensing activation will popup. Click "Your ArcGIS organization's URL" and then type "vmionline" into the organization's URL text field and SELECT "Remember this URL" then click Continue and login with your VMI credentials.

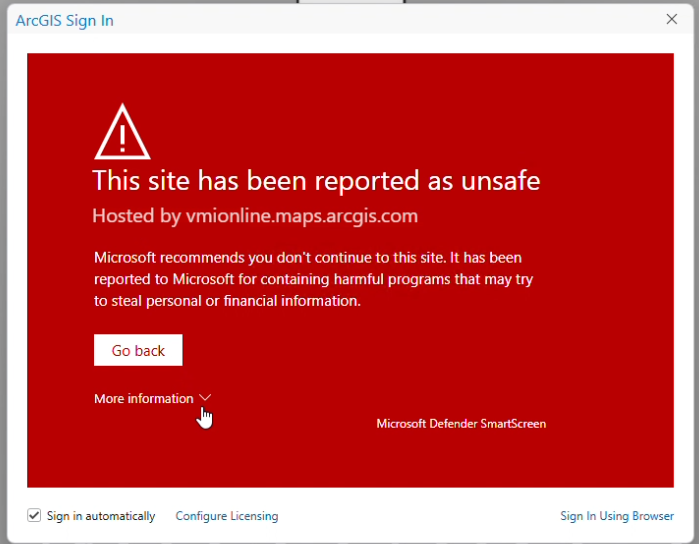

False Positive​

On very very rare occasions (less than 1%) you may see the errors below when first signing onto ArcGIS Pro. This only happens usaully on a fresh install with no browsing history and you install ArcGIS Pro as the very first thing to try to open. SmartScreen shows this warning because your ArcGIS Online login page is a tenant‑specific URL that Windows hasn’t seen before on a brand‑new profile. With no reputation history, SmartScreen treats it as “unknown,” which it labels as unsafe even though it’s legitimate. Since *.maps.arcgis.com is the official Esri domain and the site loads normally in your browser, it’s a false positive and safe to continue or sign in using your browser.

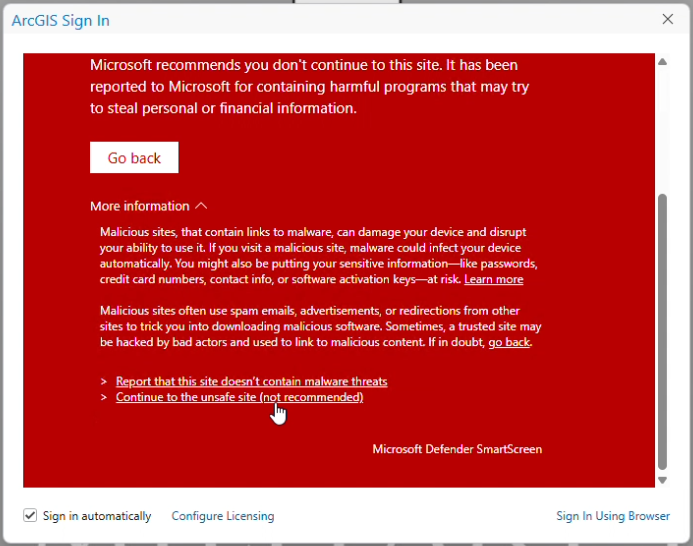

You can More information then Continue to the unsafe site (not recommended)
